A rupture disc is a precision-engineered safety device. Whether you're replacing a disc or installing a new rupture disc assembly, careful installation is essential to ensure accurate burst performance, leak-tight operation, and long service life. Here are seven key considerations to help ensure reliable installation, followed by six common mistakes that can affect performance, reliability, and service life.
Seven things to consider when installing a rupture disc
1. Read the installation instructions before you begin
It sounds obvious, but this is one of the most commonly overlooked steps. Rupture discs are not universal products. Different disc designs, holders, and applications can require specific installation methods, torque values, and orientation requirements. Before beginning installation, review the manufacturer's installation instructions and verify that you have the correct tools, gaskets, holder components, and torque specifications for the assembly being installed.
2. Keep the disc protected
Small dents, scratches, or deformation can affect a disc’s performance and potentially alter its burst characteristics. Keep the disc in its original packaging for as long as possible and only remove it when you are ready to install it. Handle the disc carefully, holding it by the edge or approved handling locations, and avoid touching critical sealing or bursting surfaces.
3. Inspect the disc thoroughly
Before installing a new rupture disc, perform a visual inspection. Look for visible dents, scratches, creases, corrosion, and signs of mishandling during transport or storage. Do not install a damaged disc.
At the same time, verify the identification tag and confirm that the burst pressure, temperature rating, material of construction, and tag number match the process requirements and maintenance documentation. A careful inspection at this stage can prevent an expensive installation error or unscheduled shutdown later on.
4. Confirm the system is safe to work on
Before any maintenance activity begins, ensure the protected system has been fully isolated and depressurized. Follow all applicable lockout/tagout (LOTO) procedures and site safety requirements beforere moving or installing a rupture disc assembly. This is particularly important in petrochemical, oil and gas, and chemical processing environments where residual pressure, hazardous media, or trapped energy may still be present after the system has been shut down.
5. Inspect holders, flanges, and sealing surfaces
The condition of the holder assembly is just as important as the condition of the rupture disc itself. Inspect the holder inlet, outlet, studs, nuts, and sealing surfaces for:
- Dirt or debris
- Corrosion
- Pitting
- Galling
- Scratches
- Damage to sealing faces
Many rupture disc assemblies rely on metal-to-metal sealing surfaces. At OsecoElfab, this seal is often referred to as the "nub and seal". Damage to these surfaces can result in persistent leakage, even when the correct torque values are used. Clean or replace damaged components as necessary before installation.
6. Check – and double-check – disc orientation and alignment
Incorrect orientation is a common installation error that can prevent rupture discs from performing as intended and may lead to premature disc failure. Fortunately, it is also one of the easiest issues to prevent. When assembling the holder:
- Place the rupture disc in the inlet holder section;
- Ensure all flow arrows arealigned;
- Verify the arrows point in the direction of process flow;
- Assemble the outlet section and secure any pre-assembly clips or screws finger tight;
- Ensure the rupture disc assembly is inserted between the flanges with the flow arrows pointing in the correct direction.
.png)

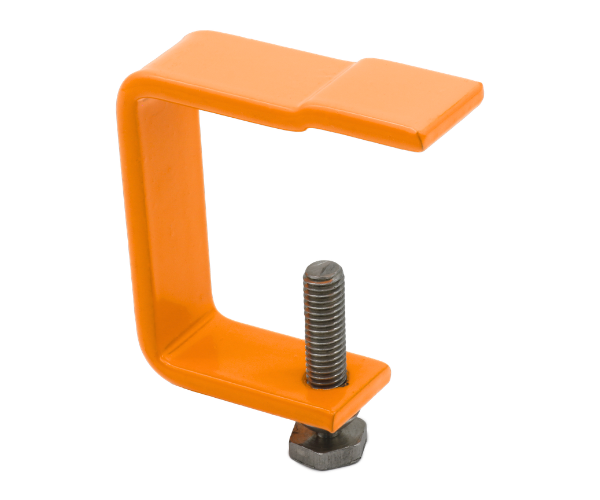

System-Loc - A Practical Installation Tool
At OsecoElfab we understand the practical challenges of rupture disc installation. The installation points are often in hard-to-reach locations, and teams are often under pressure to complete installations within a tight time frame, sometimes in adverse weather conditions. That’s why we developed System-Loc. This installation aid helps maintenance teams position rupture disc holders correctly without needing to drill flanges. This reduces installation complexity and helps prevent alignment errors that could affect performance.
7. Apply the correct torque sequence
Proper bolt tightening is critical to both sealing performance and burst accuracy. Under-torquing can result in leakage and an unreliable seal. Over-torquing can deform holder sealing surfaces, introduce stress into the disc assembly, and in some cases affect burst performance. Torque according to ASME guidelines. A star-pattern tightening sequence helps distribute load evenly across the assembly and reduces the risk of uneven flange loading. A typical tightening sequence is:
- First pass: 50% of final torque
- Second pass: 75% of final torque
- Third pass: 100% of final torque
- Final pass: Circular bolt-to-bolt check at 100%
A rupture disc is a vital safety component that protects people, plant, equipment, and the environment from catastrophic overpressure events. Proper installation helps ensure accurate burst performance, reliable sealing, reduced maintenance costs, and longer service life. By following the manufacturer instructions, inspecting components carefully, and applying the correct torque and alignment procedures, maintenance teams can reduce the risk of leaks, nuisance failures, and unplanned downtime.
Upskill your team with rupture disc installation training
A rupture disc is a vital safety component that protects people, plant, equipment, and the environment from catastrophic overpressure events. Proper installation helps ensure accurate burst performance, reliable sealing, reduced maintenance costs, and longer service life. By following the manufacturer instructions, inspecting components carefully, and applying the correct torque and alignment procedures, maintenance teams can reduce the risk of leaks, nuisance failures, and unplanned downtime.
Across the pressure relief industry, manufacturers consistently emphasize that installation should only be carried out by trained personnel familiar with rupture discs and associated piping systems. We offer in-depth safety training and maintenance seminars to upskill your team and train them on correct rupture disc usage, handling, storage, and installation procedures. Whether you're onboarding new engineers or refreshing best practices across an experienced maintenance team, our training programs can help improve safety, reliability, and operational confidence.
Please email us or contact your rep for further information.
